ATLAS F  MISSILE SITES



ENTRANCE TO THE LAUNCH CONTROL CENTER

THE ENTRANCEWAY TO THE LCC CONSISTS OF A STAIRWAY DOWN FROM GRADE LEVEL, ENTRAPMENT AREA, TWO BLAST DOORS, CONNECTING TUNNEL AND A STAIRWELL FOR THE LCC LEVELS AND TO THE MISSILE SILO CONNECTING TUNNEL.579entry0001.jpg (199197 bytes)

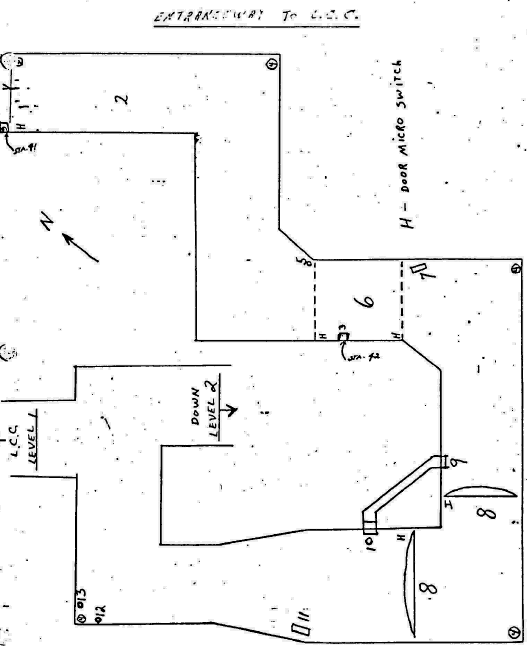

ENTRANCEWAY TO LCC:

     1.  GRADE ENTRY DOOR AND MICRO SWITCH.

     2. STAIRWAY DOWN

     3. TELEPHONE

     4. BULL HORNS (5 EACH)

     5. ENTRAPMENT AREA DOOR WARNING BUZZER

     6. ENTRAPMENT AREA - TWO DOORS AND MICRO SWITCHES

     7.  T.V. MONITOR CAMERA

     8.  BLAST DOORS (2) AND MICRO SWITCHES

     9.  LCC STAIRWELL AIR EXHAUST VENT

     10. LCC STAIRWELL BLAST CLOSURE 16"

     11. EMERGENCY LIGHTING

     12.  SEWER DRAIN

     13. SEWER VENT
