MISSILE SILO



WALKER  AFB

ROSWELL, NEW MEXICO

579th STRATEGIC MISSILE SQUADRON

SITE 10

MISSILE SILO PHOTOS

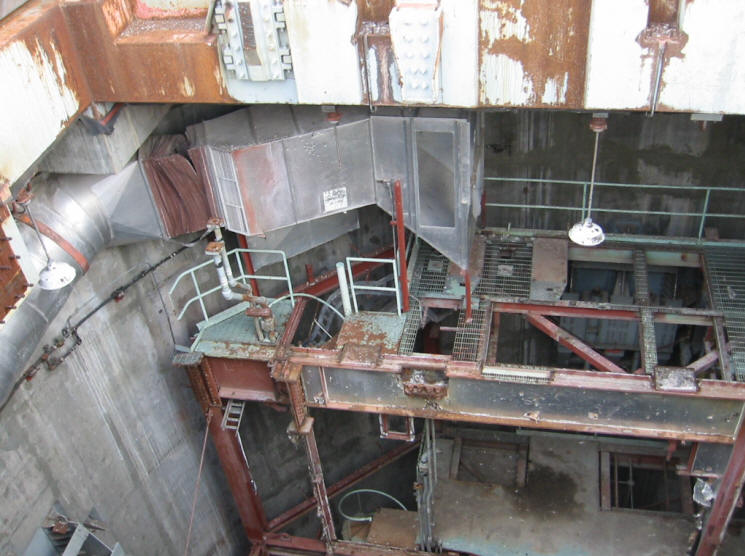

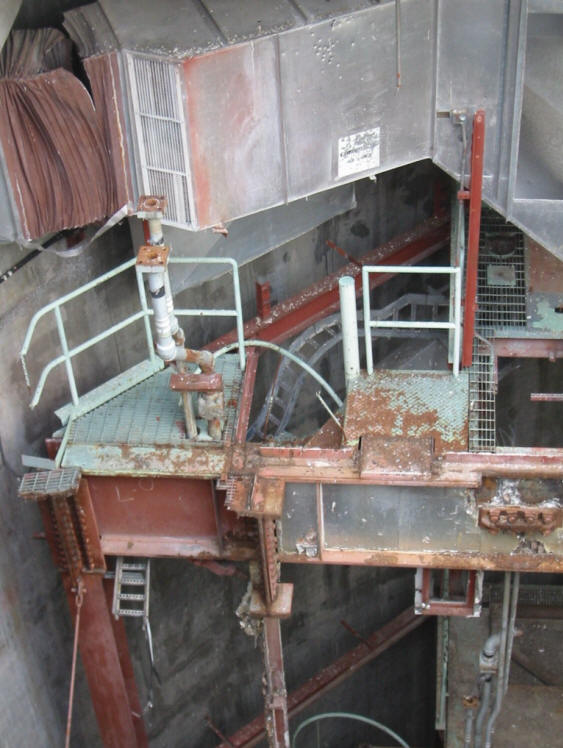

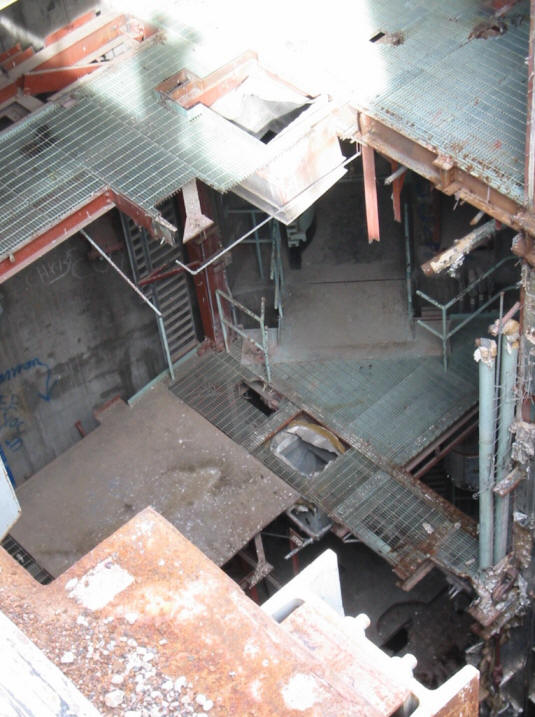

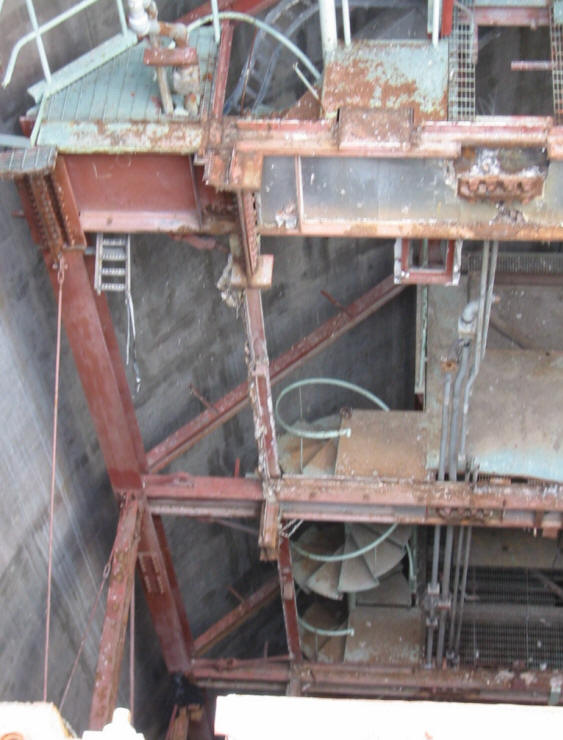

LOOKING DOWN ON LEVEL 1

NOTE:  AIR WASHER / DUST COLLECTORS ARE MISSING

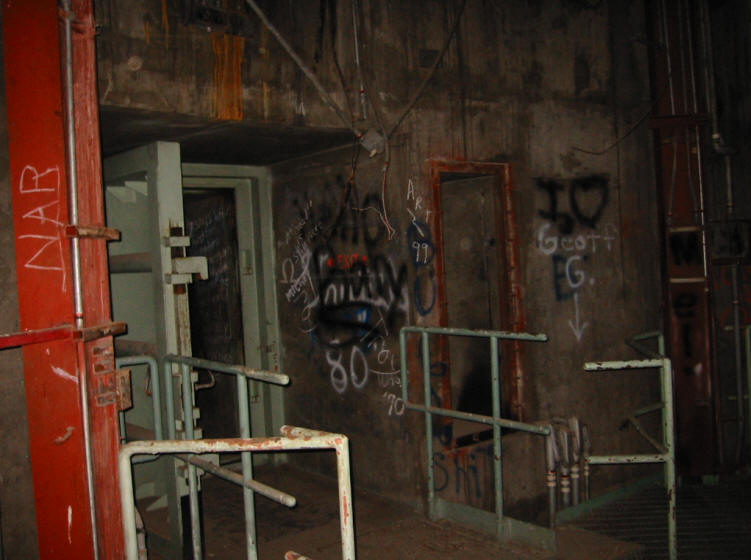

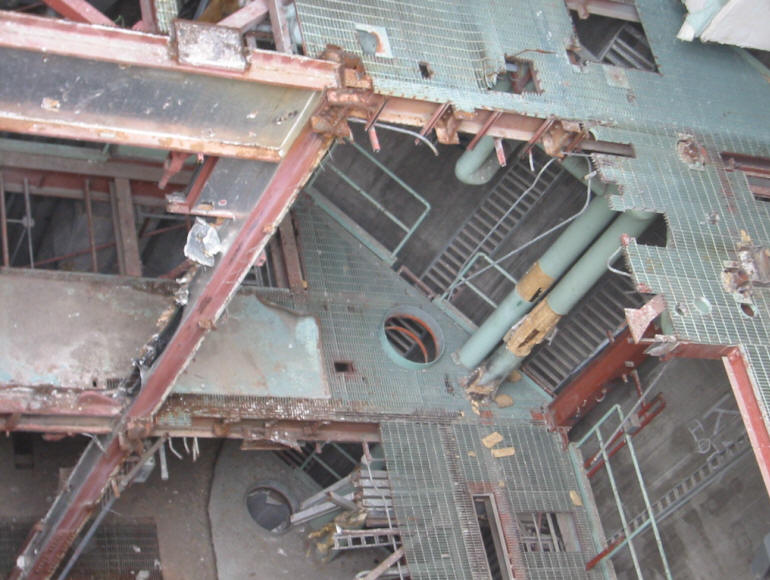

LEVEL 1 AND LEVEL 2

NOTE:  ACCESS FROM UTILITY TUNNEL

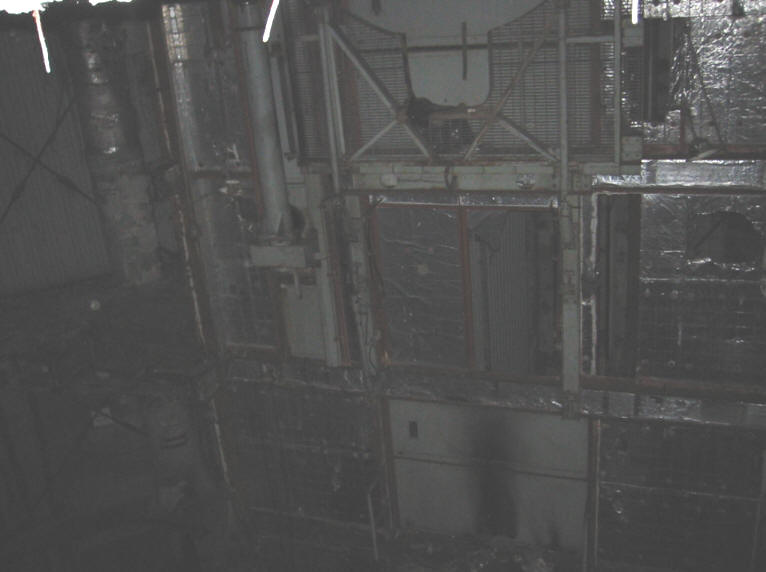

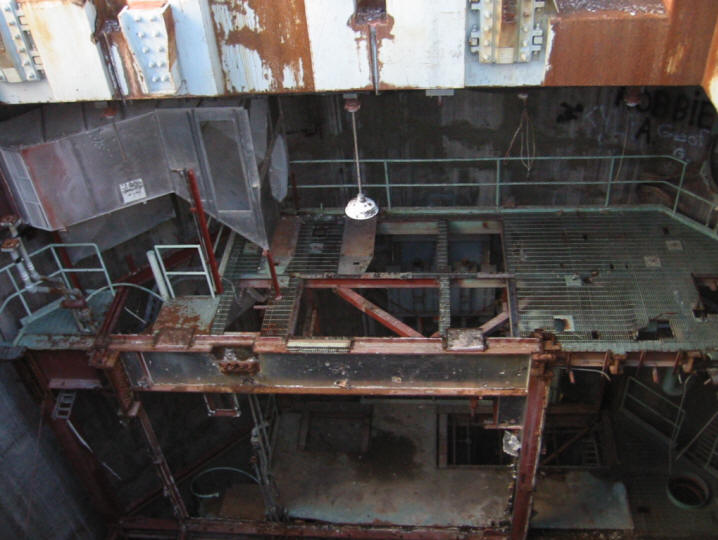

LEVEL 1

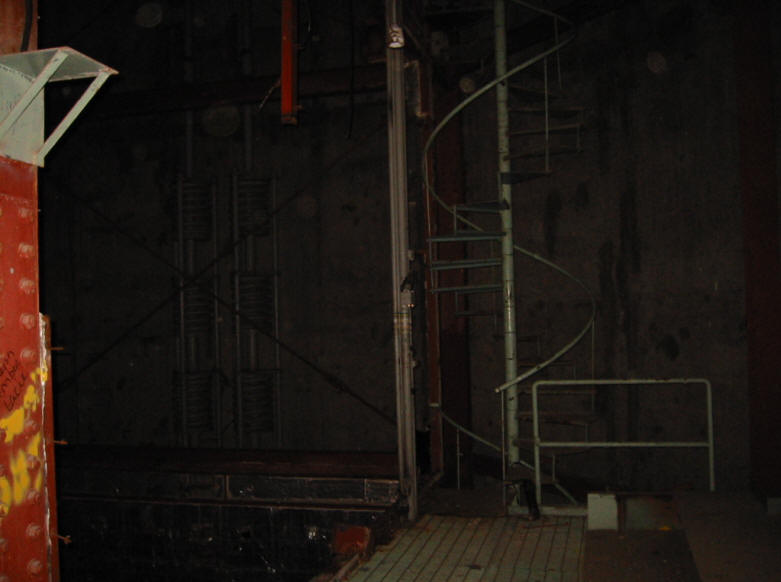

NOTE:  SPIRAL STAIRCASE

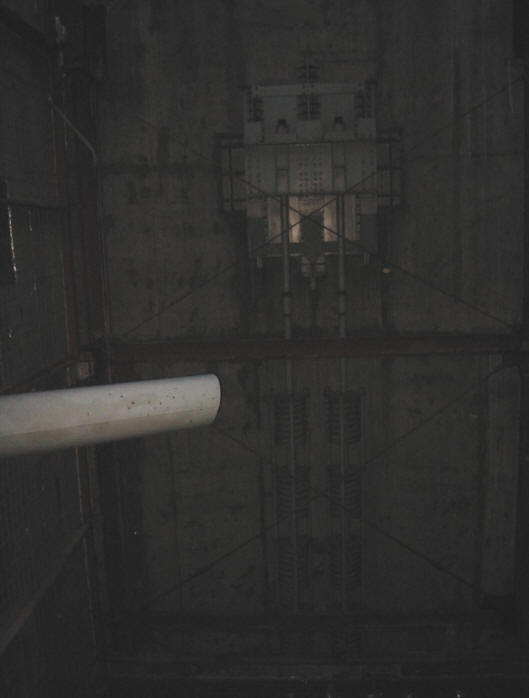

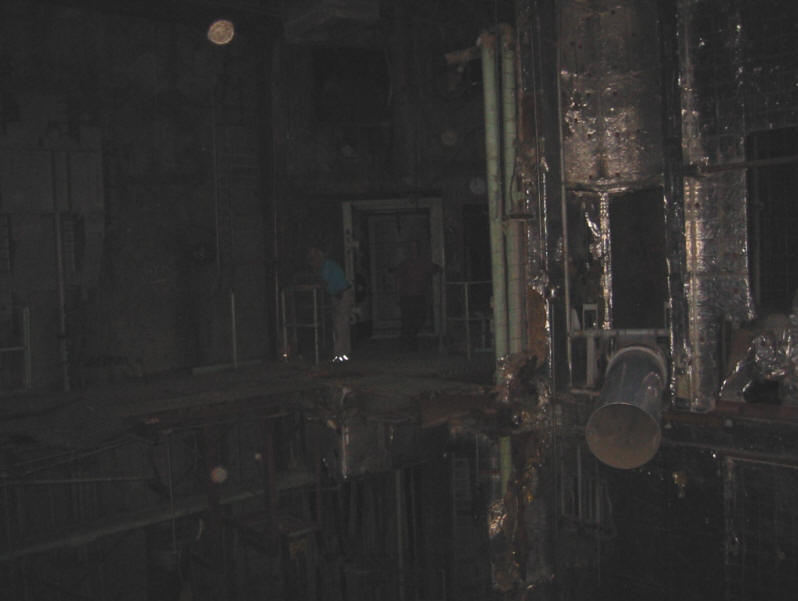

LEVEL 1 ELEVATOR ACCESS TO MISSILE ENCLOSURE AREA

NOTE:  LAUNCH PLATFORM CRIB LOCK HAS BEEN CUT OFF

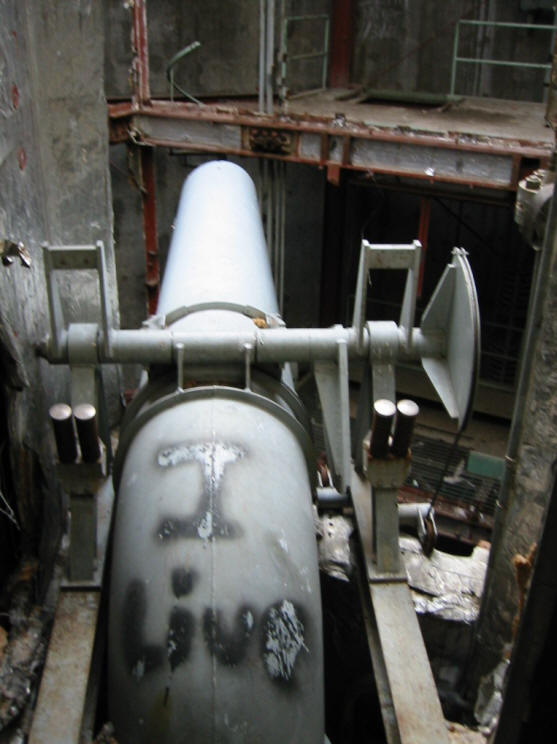

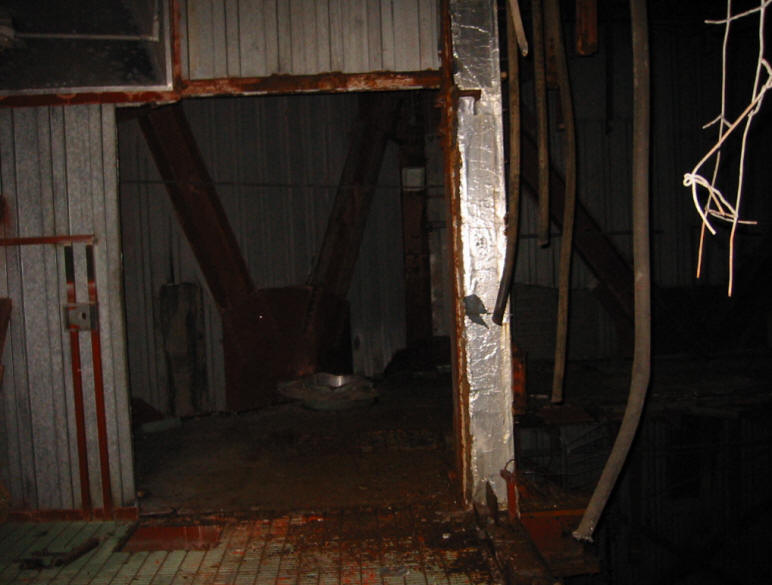

LEVELS  1 & 2

NOTE:  GASEOUS OXYGEN VENT STILL IN PLACE

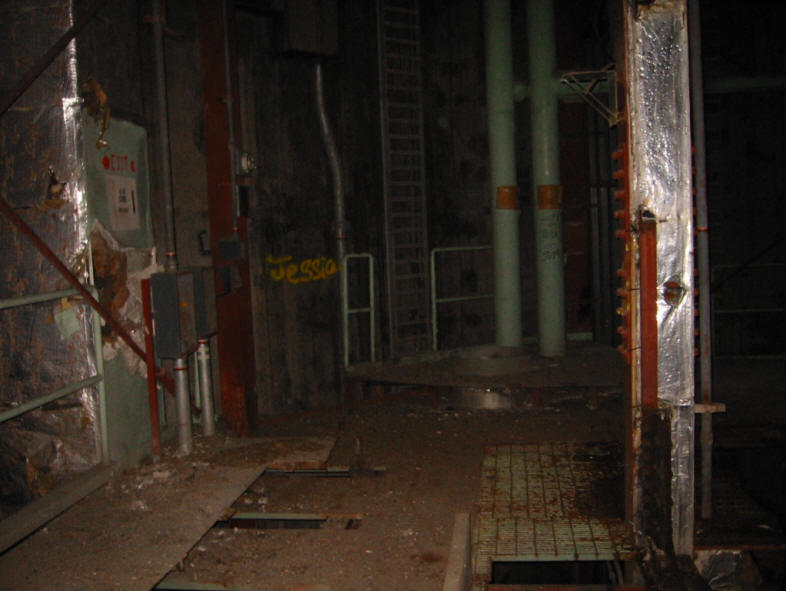

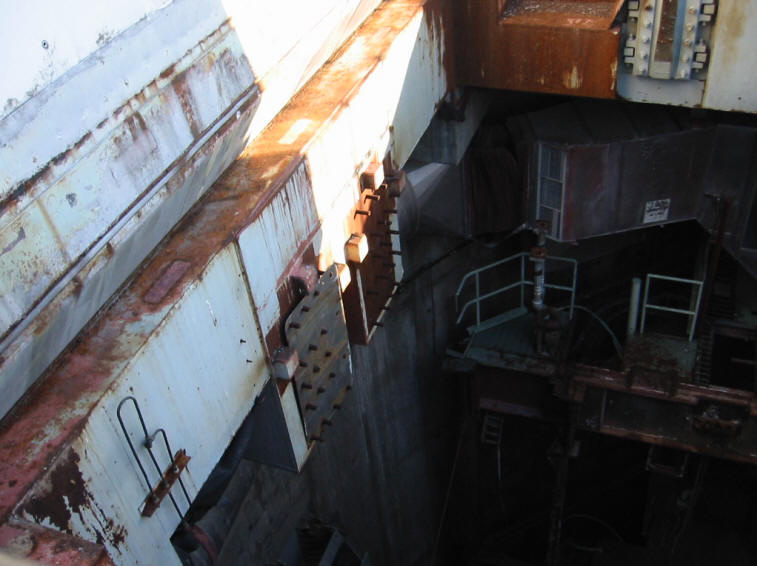

LEVEL 1 & 2

NOTE:  UP LOCKS HAVE BEEN CUT OFF AND BREAKER CYLINDERS ARE GONE

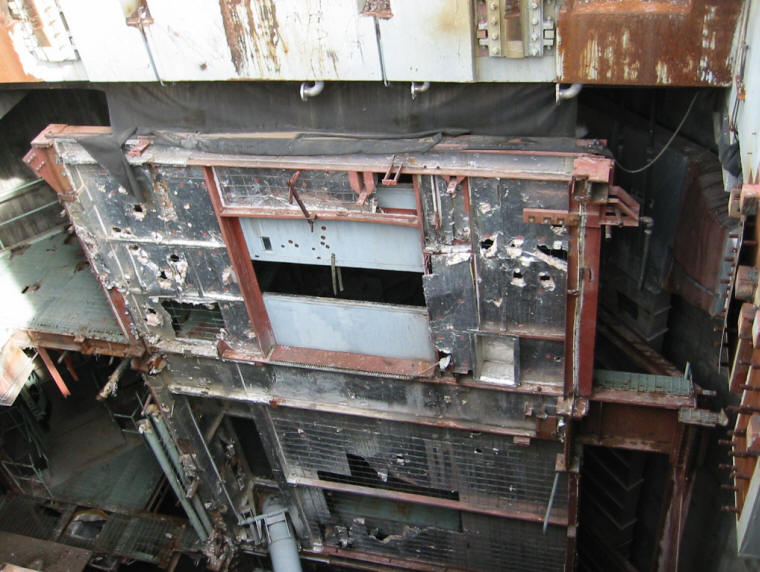

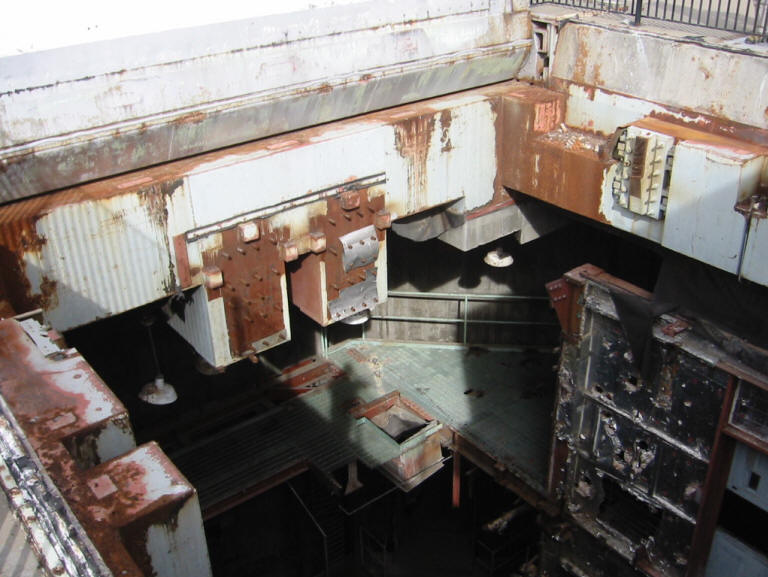

LEVELS 2 & 3

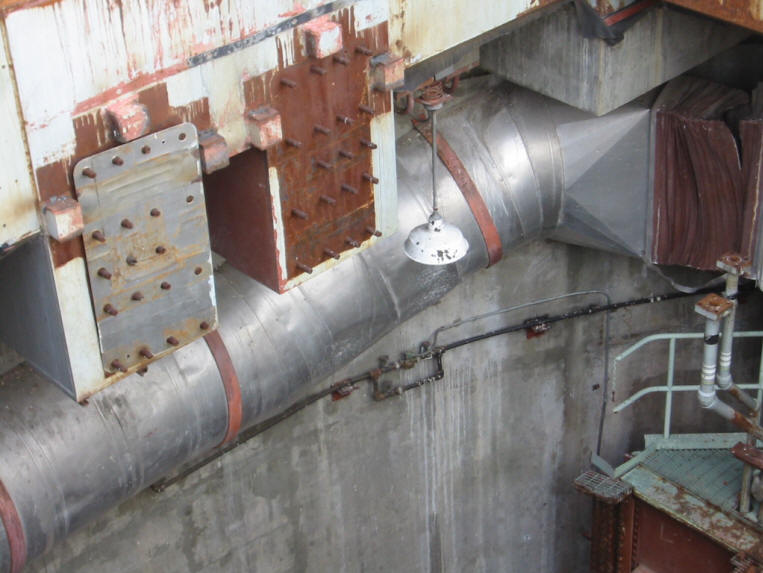

HVAC DUCTING ON LEVEL 1





SPIRAL STAIRCASE LEVEL 2 TO 3

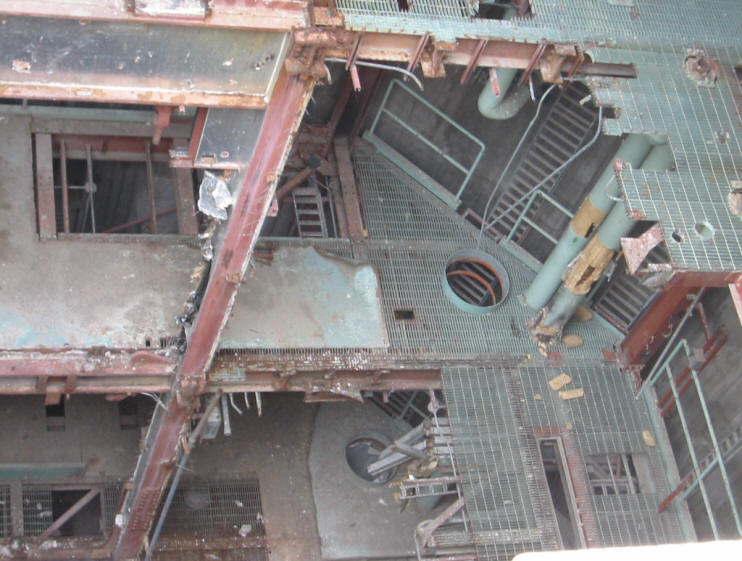

LEVEL 1, 2 AND 3

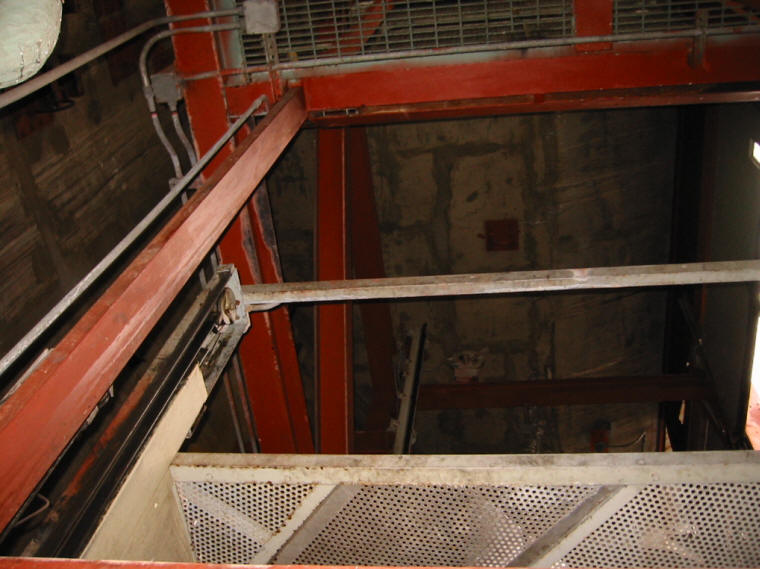

ELEVATOR ACCESS

NOTE:  LEVEL 2 UTILITY TUNNEL ACCESS

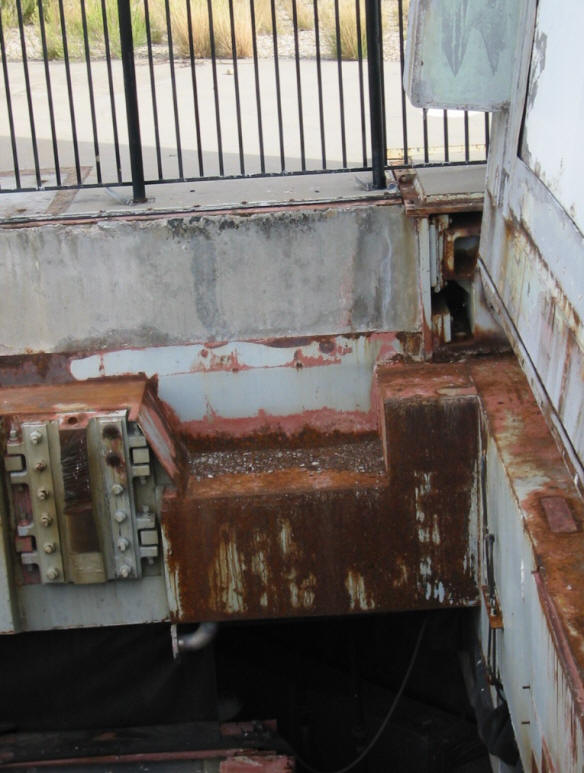

LAUNCH PLATFORM UPLOCKS





HYDRAULIC  RAM MOUNTING BASE FOR TRUNION





































LEVEL 2  ACCESS FROM UTILITY TUNNEL





LEVEL 2





GASEOUS OXYGEN VENT

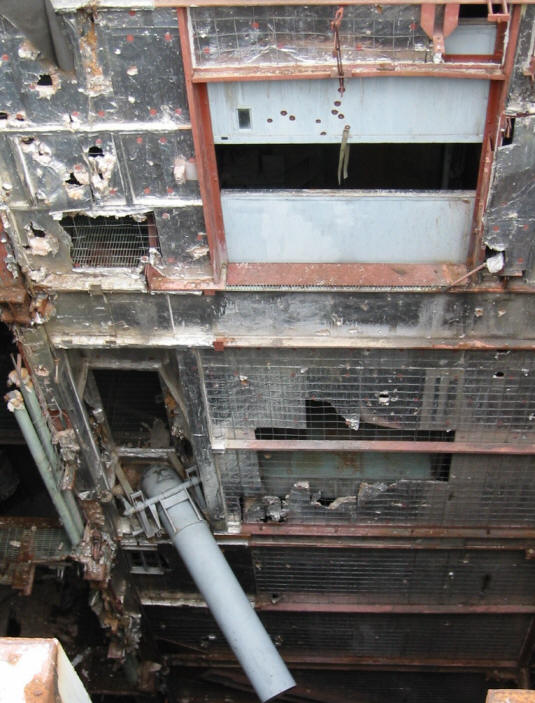

LEVEL 2 LOOKING DOWN ON LEVEL 3





PERSONNEL & FREIGHT ELEVATOR STILL ON LEVEL 2





LEVEL 2

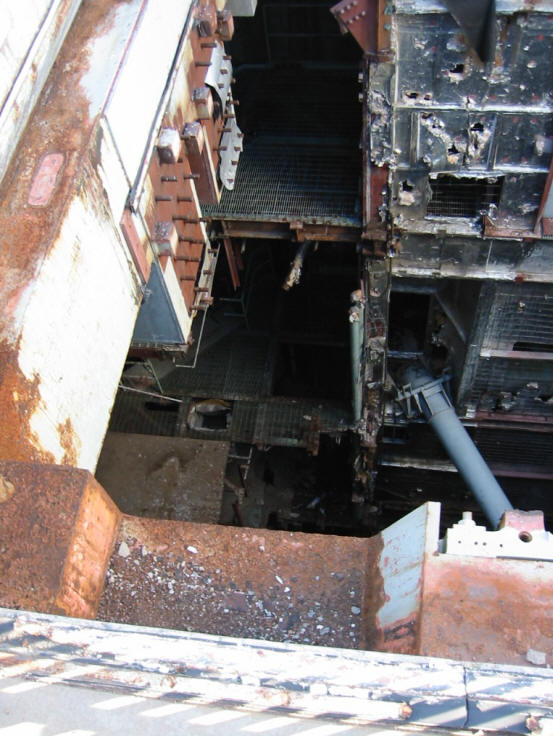

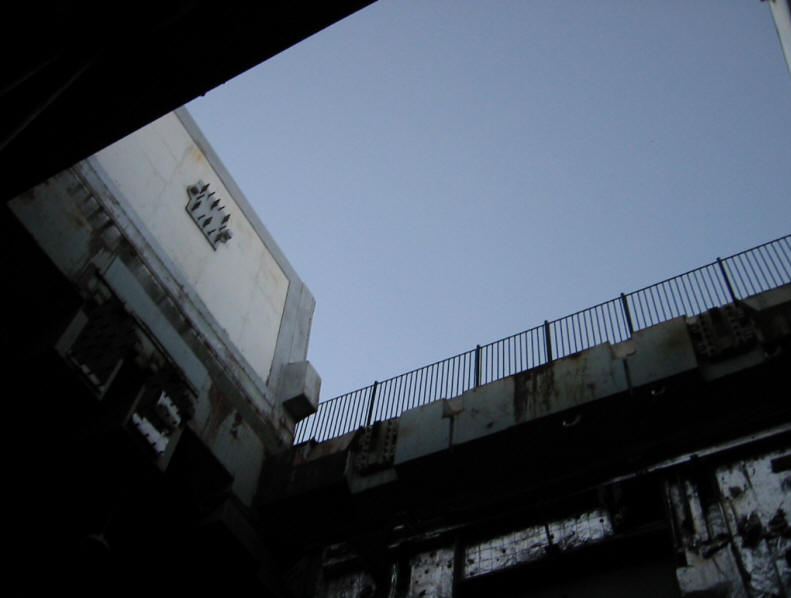

LOOKING UP AT SILO DOORS FROM LEVEL 2





ELEVATOR LEVEL 1





LEVEL 3





LEVEL 3 SPIRAL STAIRCASE





GASEOUS OXYGEN VENT BLAST VALVE TO FILL & VENT SHAFT

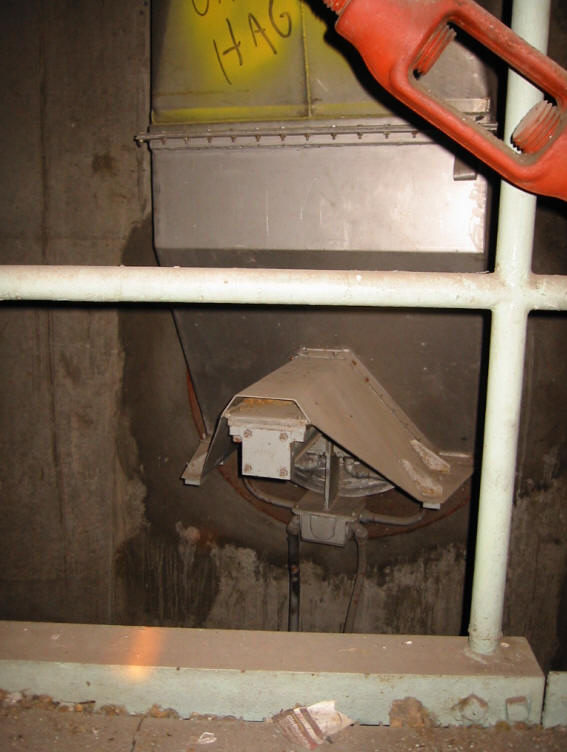

GASEOUS OXYGEN VENT BLAST VALVE





LOOKING UP AT BOTTOM OF PERSONNEL & FREIGHT ELEVATOR

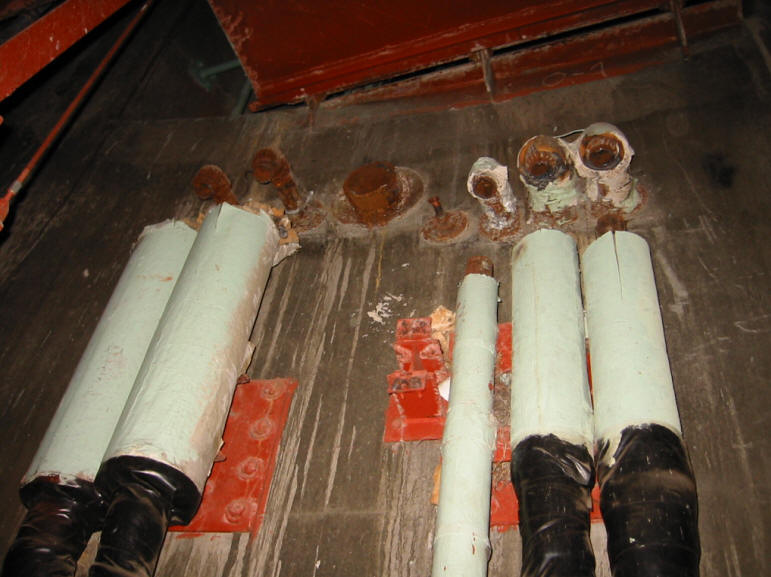

WATER LINES FROM UTILITY TUNNEL ALSO 1 COPPER AIR LINE FOR BLAST VALVES

NOTE:  6" WATER LINE IN THE MIDDLE

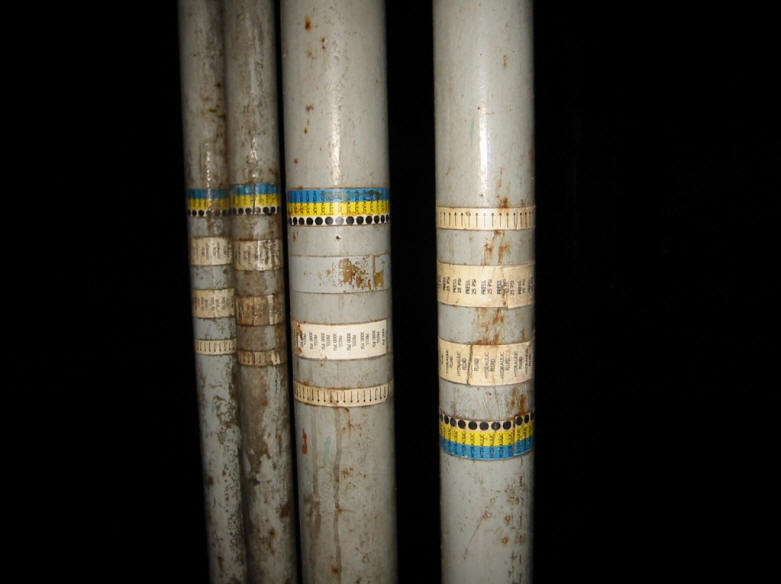

HYDRAULIC LINES RUNNING LENGTH OF SILO





LEVEL 4











LEVEL 5





WORK PLATFORMS

NOTE:  RETRACTABLE COLLIMATOR SIGHT TUBE
