LF-08



MINUTEMAN

VANDENBERG  AFB

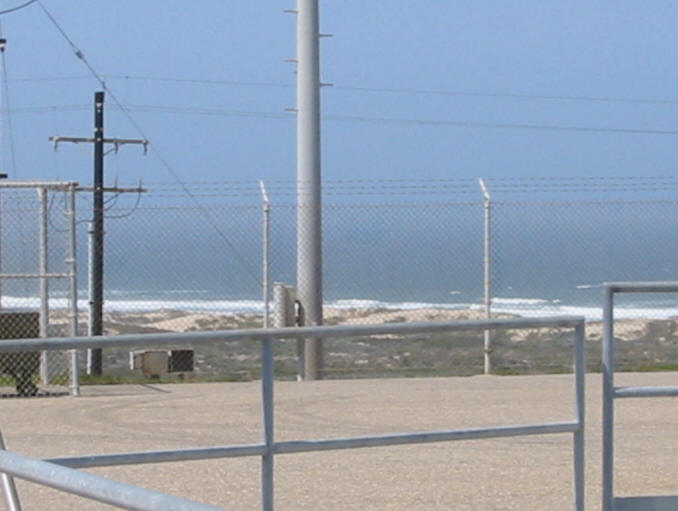

TOPSIDE VIEW TO THE PACIFIC

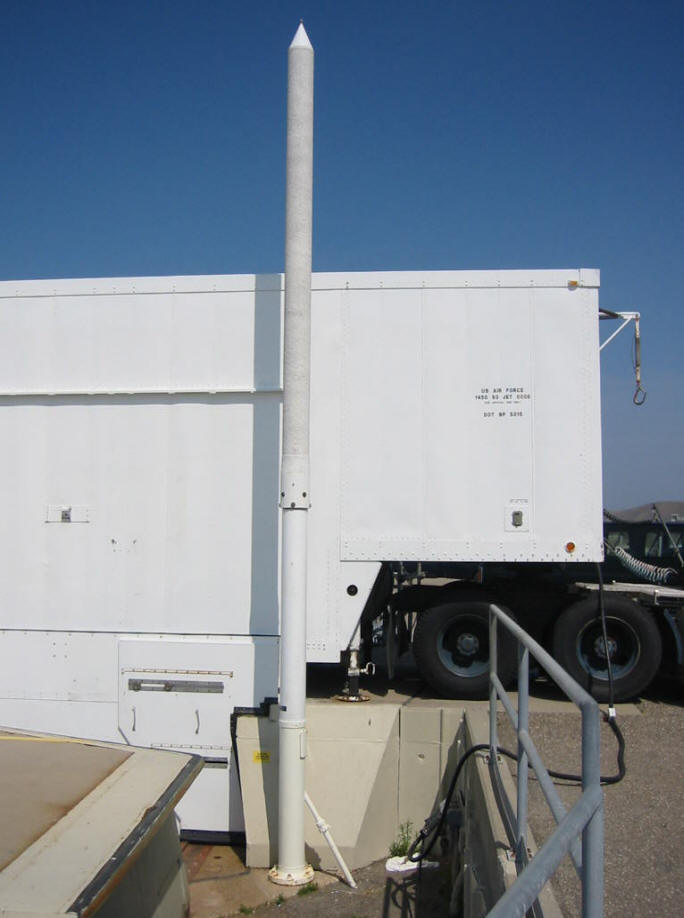

IMPSS POLE

NOTE:  PART OF THE OZ SECURITY SYSTEM

NOTE:  PAYLOAD TRANSPORTER IN BACKGROUND

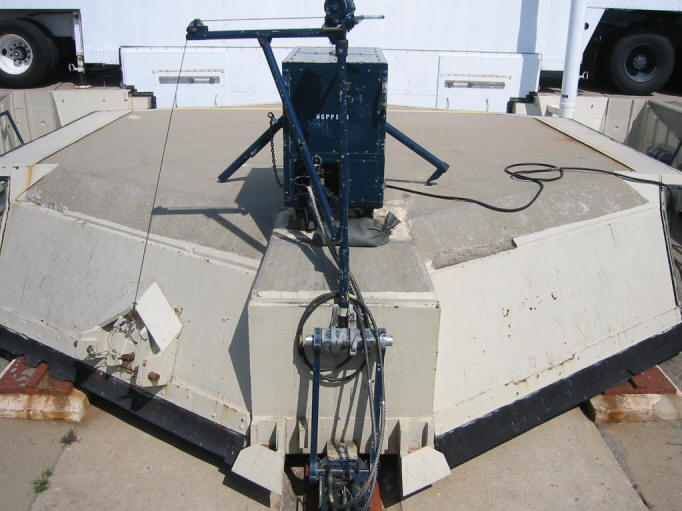

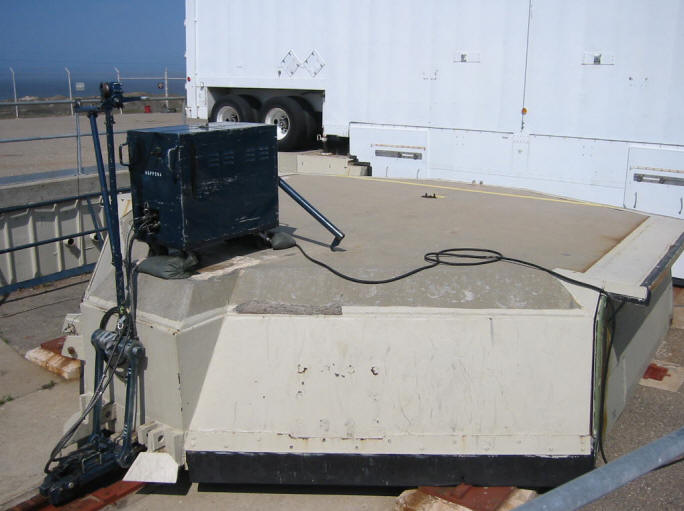

LAUNCHER CLOSURE DOOR 110 TONS OF REINFORCED CONCRETE & STEEL

NOTE:  IN THE EVENT OF A LAUNCH THE BALLISTIC GAS GENERATOR WILL MOVE THIS DOOR FROM 0-35 MPH IN 5 SECONDS

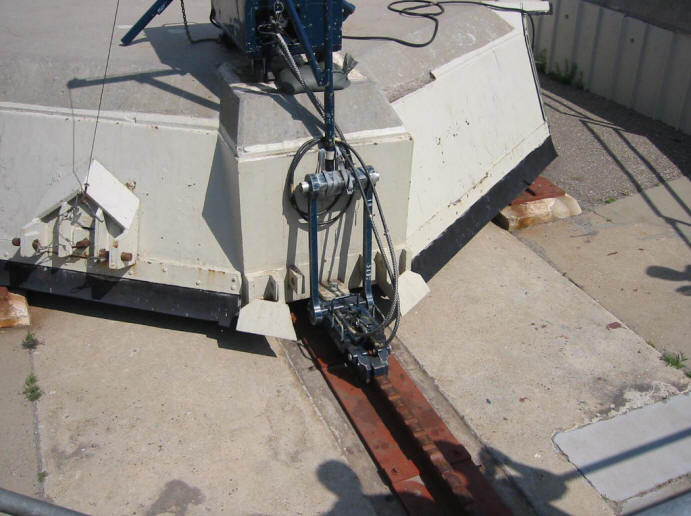

LAUNCHER CLOSURE DOOR





LAUNCHER CLOSURE DOOR

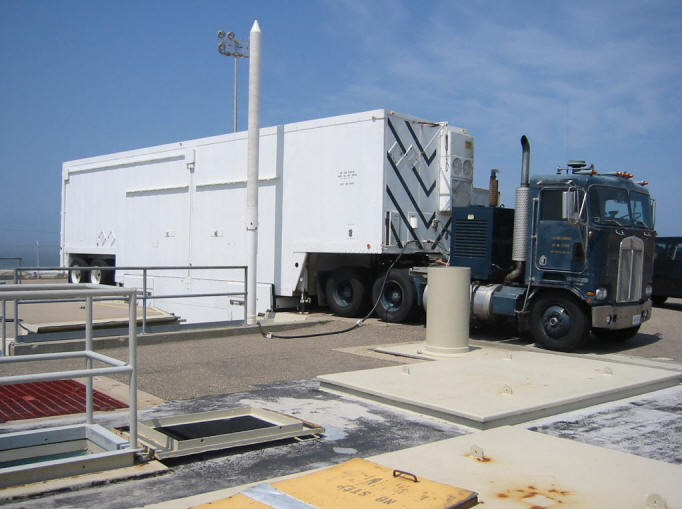

PAYLOAD TRANSPORTER

NOTE:  THIS UNIT CARRIES THE WARHEAD TO & FROM THE LAUNCH FACILITY

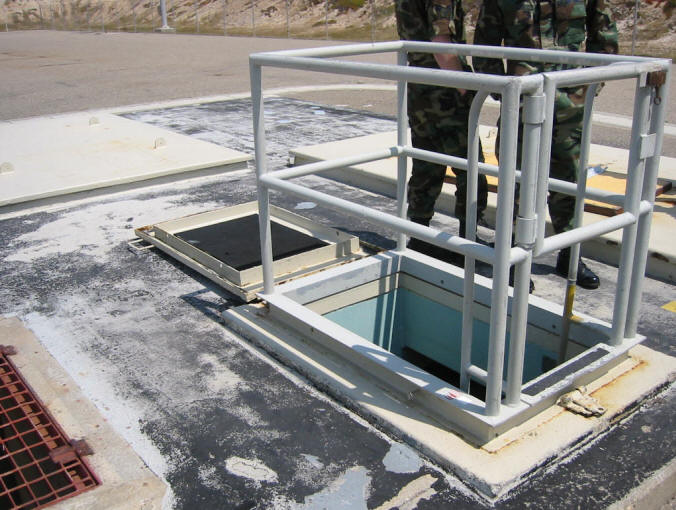

ENTRANCE TO THE LAUNCHER SUPPORT BUILDING

NOTE:  VENT SHAFT COVER TO THE LEFT

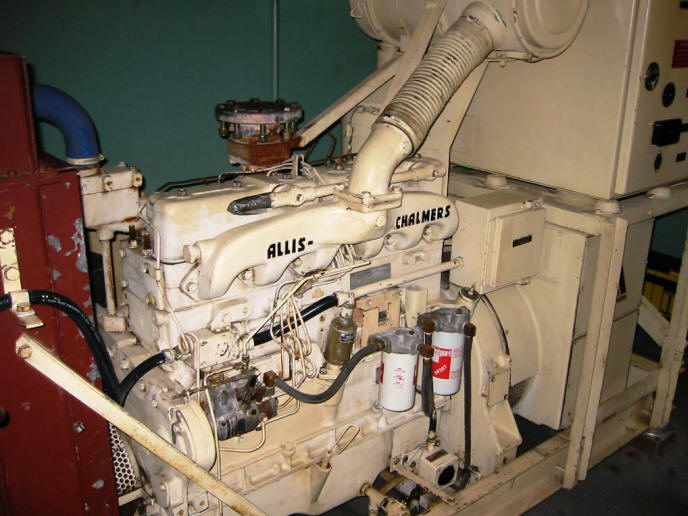

DIESEL GENERATOR FOR EMERGENCY BACKUP POWER

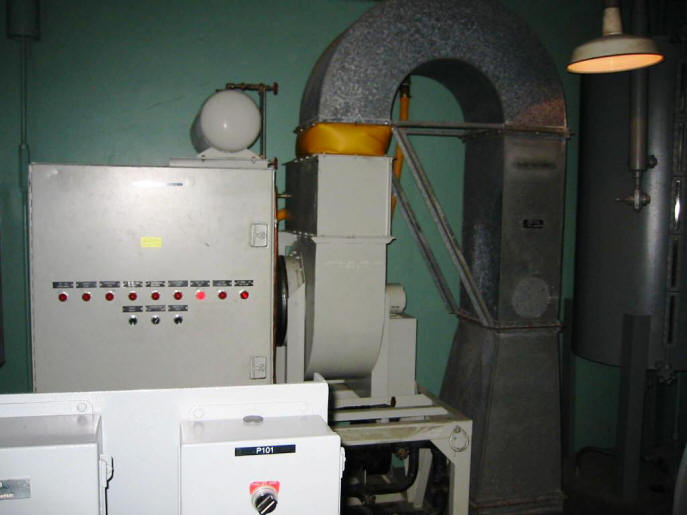

BRINE CHILLER FOR LAUNCHER FACILITY COOLING

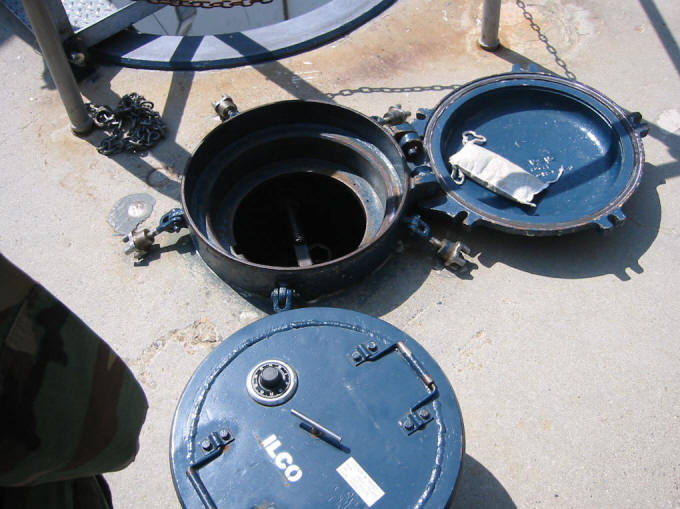

A-CIRCUIT & SECURITY PIT

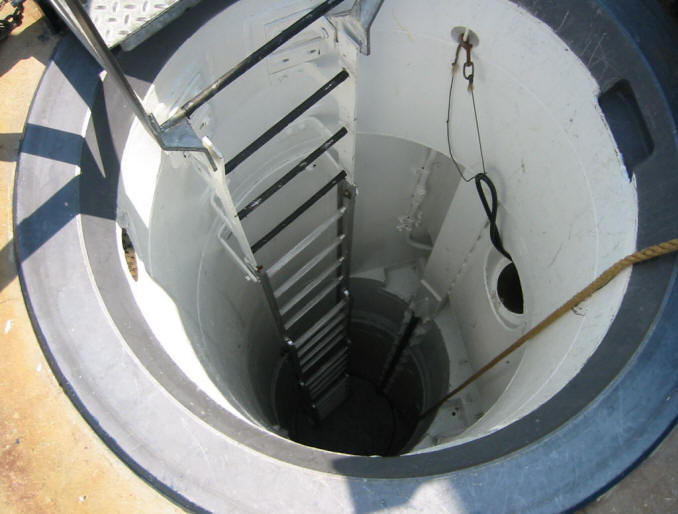

PERSONNEL ACCESS SHAFT

NOTE:  B-PLUG IN THE DOWN POSITION

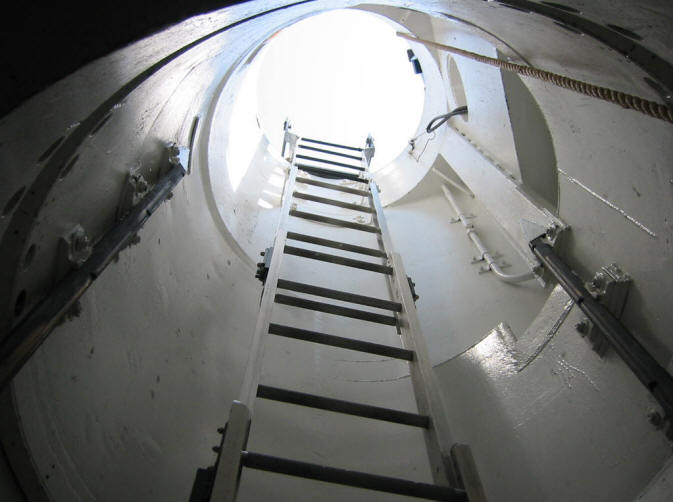

LOOKING UP PERSONNEL ACCESS SHAFT

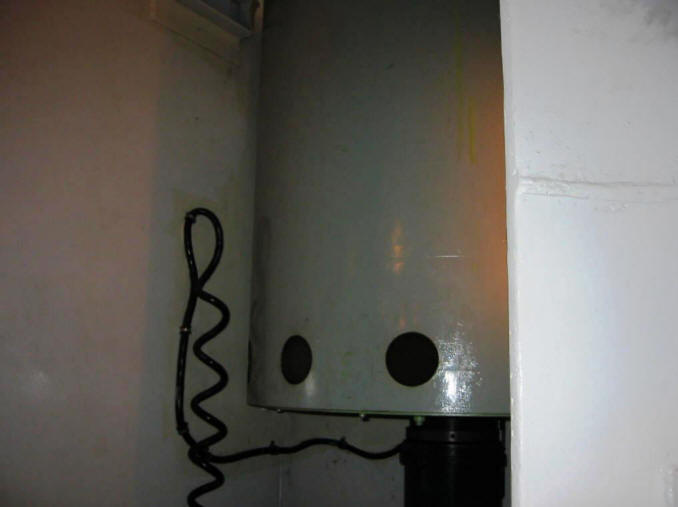

B-PLUG IN THE DOWN POSITION

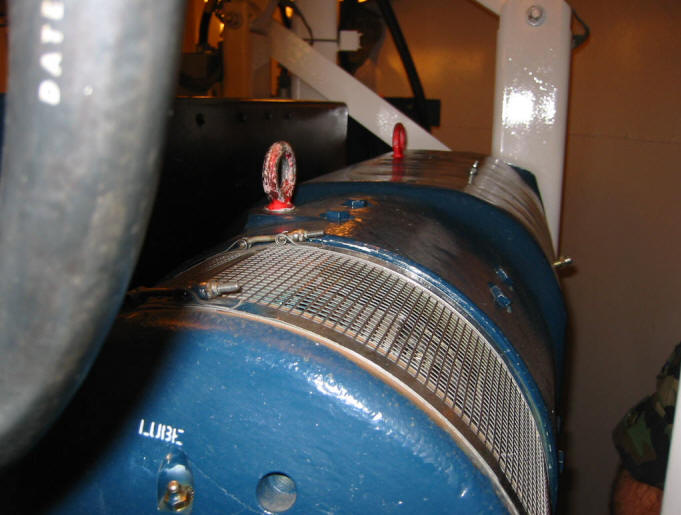

MOTOR GENERATOR

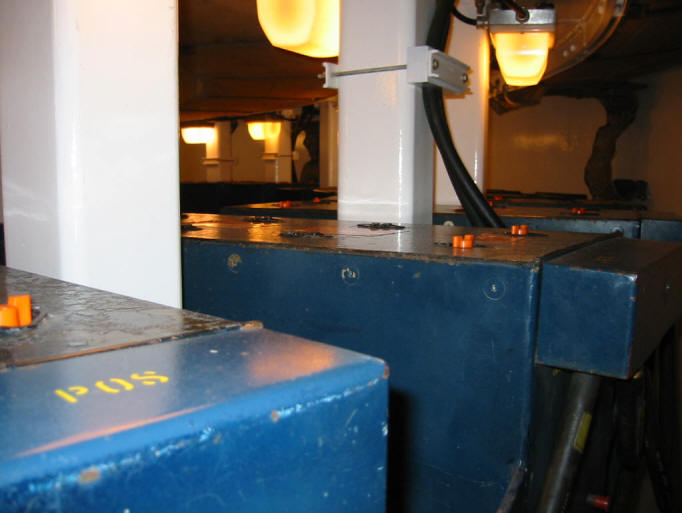

STORAGE BATTERIES

NOTE:  THERE ARE 12 OF THESE TO SUPPORT THE SITE AND WEIGHT 1500LBS EACH

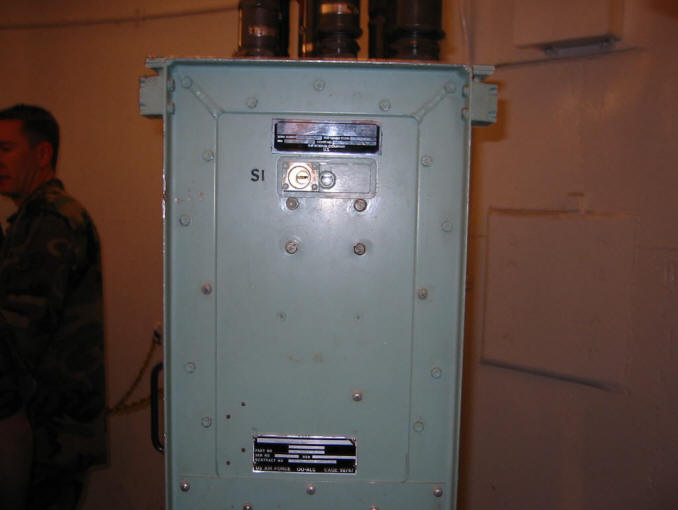

DISTRIBUTION BOX OR D-BOX

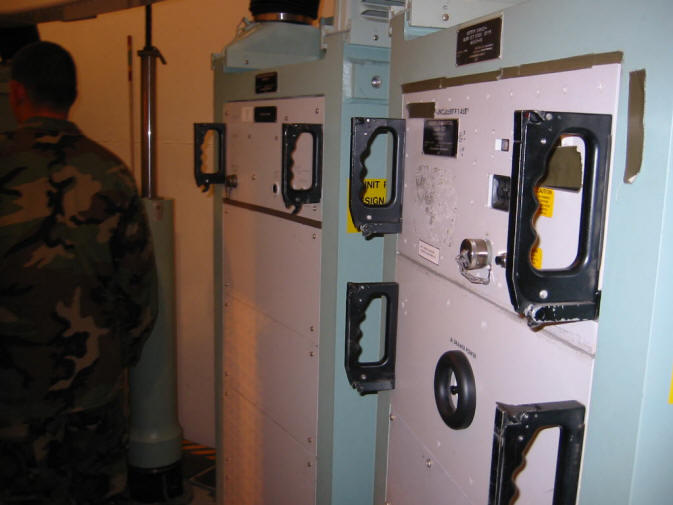

EQUIPMENT RACKS 1 & 2

NOTE: BATTERY CHARGER...ALARM SET GROUP AND UHF RADIO RECEIVER GROUP IN BACKGROUND

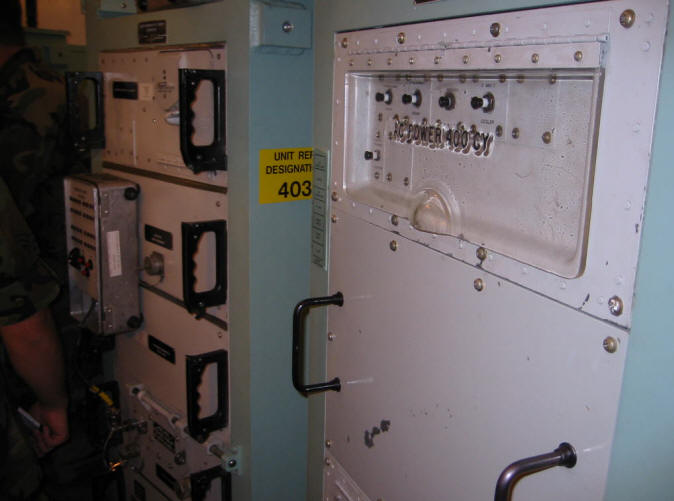

EQUIPMENT RACKS 3 & 4

NOTE:  POWER SUPPLY GROUP IN FOREGROUND AND THE PROGRAMMER GROUP IN BACKGROUND

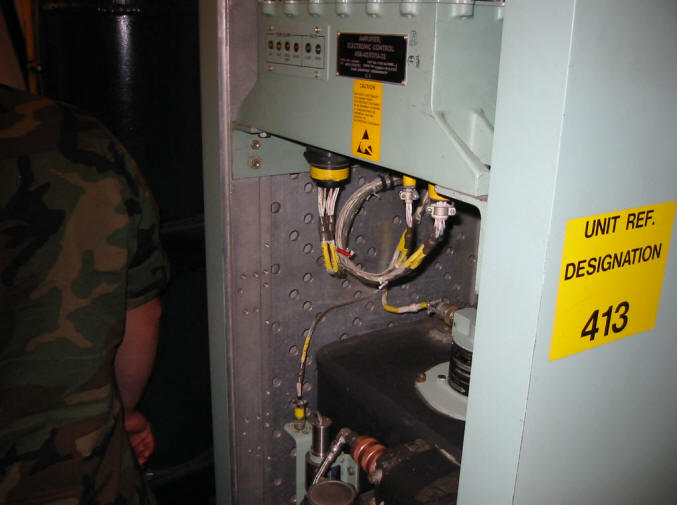

GUIDANCE SECTION LIQUID COOLER

NOTE:  THIS UNIT CIRCULATES COOLANT AROUND THE MISSILE GUIDANCE SYSTEM

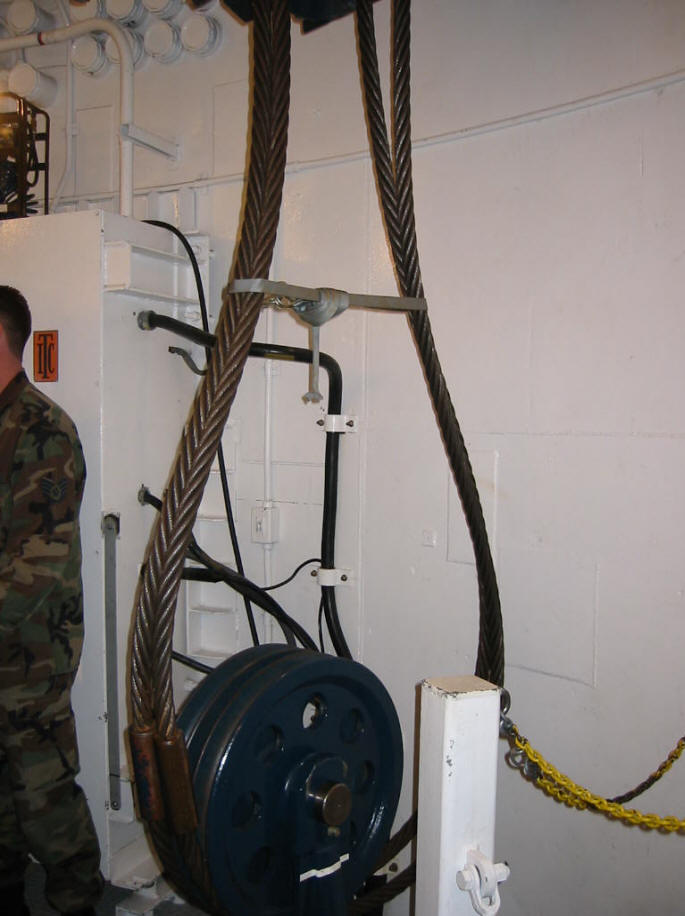

MOVING SHEAVE FOR THE LAUNCHER CLOSURE DOOR

NOTE: THE SHEAVE IS IN THE DOWN POSITION AND THE CABLES ARE SLACK BECAUSE THE LAUNCHER CLOSURE DOOR IS OPEN

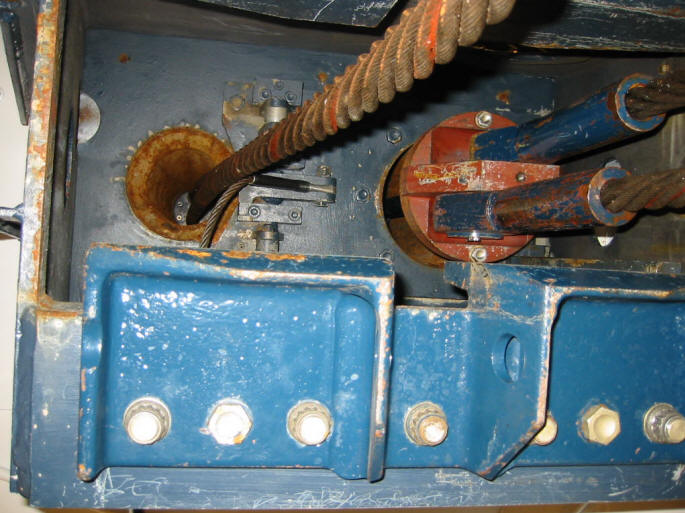

UPPER PORTION OF THE MOVING SHEAVE

NOTE:  THE CABLES DISAPPEAR INTO THE CEILING OF THE UPPER LAUNCHER EQUIPMENT ROOM WHERE THEY ARE ATTACHED TO THE NORTH SIDE OF THE LAUNCHER CLOSURE DOOR

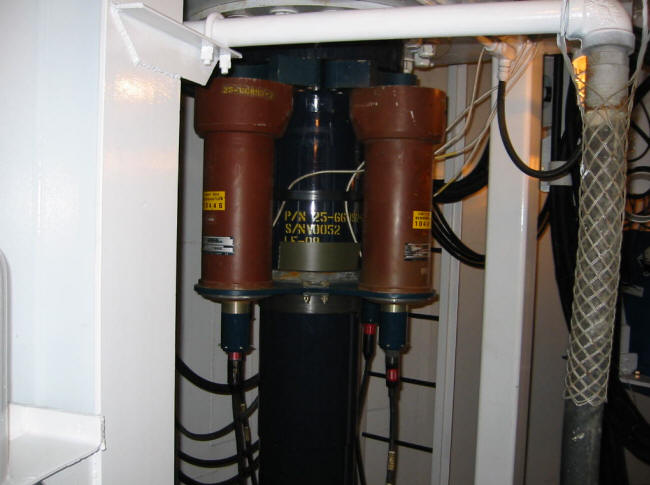

BALLISTIC GAS GENERATOR FOR LAUNCHER CLOSURE DOOR

NOTE:  4 CHARGED SQUIBS  TO ASSIST IN THE OPENING, TYPICALLY ONLY ONE IS USED DURING A TEST LAUNCH

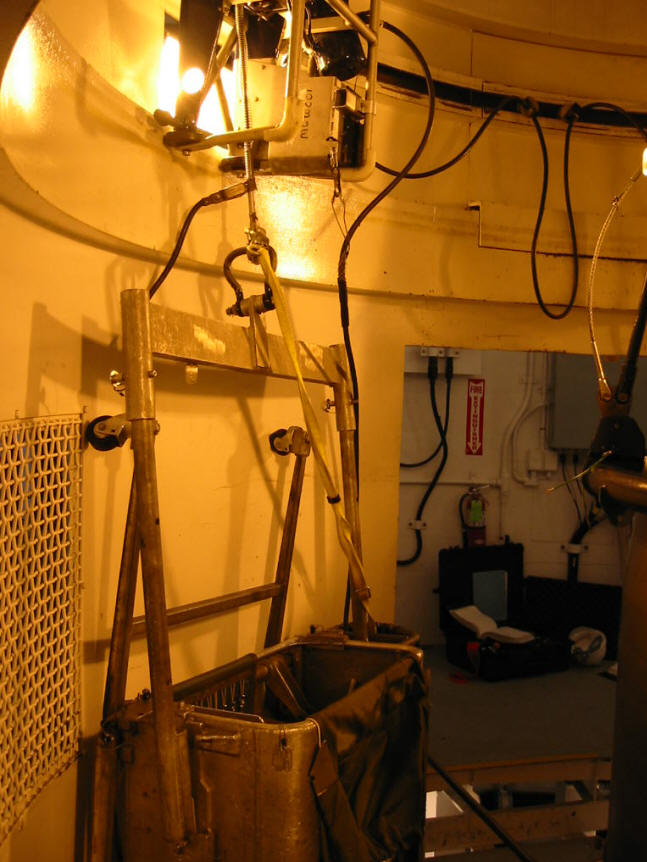

ACCESS BASKET FOR MISSILE CREWS TO PERFORM MAINTENANCE

NOTE:  TRACK ABOVE ALLOWS ACCESS BASKET TO MOVER 360 DEGREES AROUND THE MISSILE

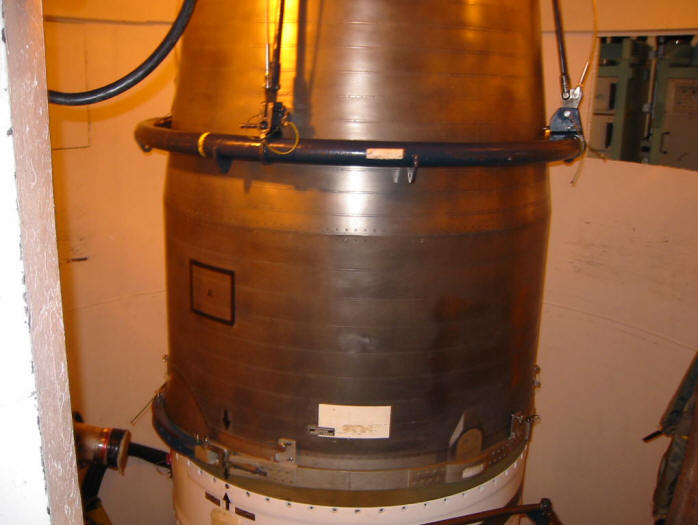

AFT AERO SHROUD





FORWARD AERO SHROUD

NOTE:  STEEL RAIL FOR THE ACCESS BASKET

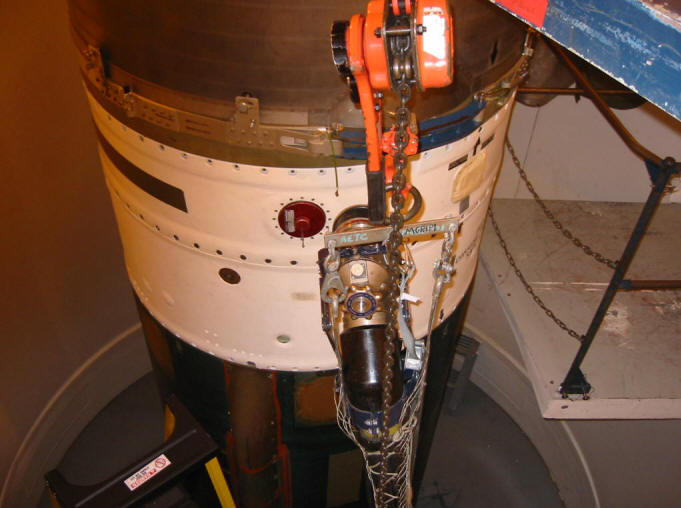

GUIDANCE SECTION LIQUID COOLER UMBILICAL FOR COOLING MISSILE GUIDANCE SYSTEM

NOTE:  THE MISSILE IN LF-08 IS ONLY THE TOP HALF OF THE MINUTEMAN III.  IF YOU LOOK CLOSELY AT THE PHOTO, YOU CAN SEE HOW MUCH OF THE LAUNCH TUBE HAS BEEN FILLED UP.

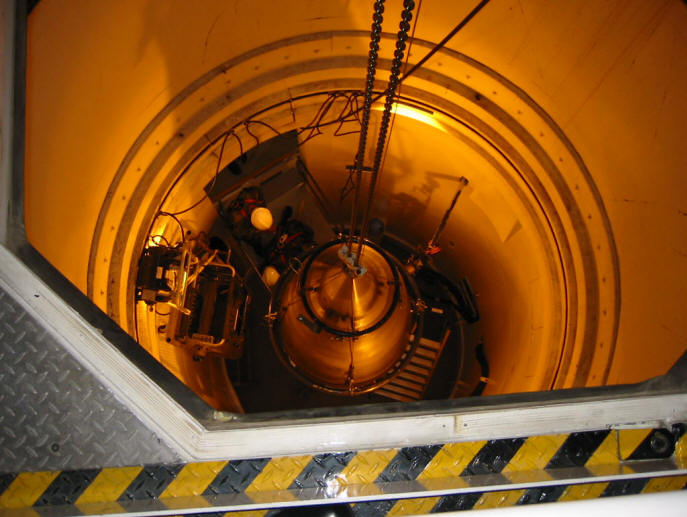

LAUNCH TUBE

NOTE:  ACCESS BASKET AND WORK PLATFORM



MANY THANKS TO PAYAT RITTLER FOR SHARING THESE GREAT PHOTOS TAKEN DURING A MISSILE MAINTENANCE TRAINING SESSION
