T.O. 21M-HGM16F-1



ATLAS  F  MISSILE  BASE

DIAGRAMS



SELECT DIAGRAMS FROM

ATLAS  F  OPERATIONAL MANUAL

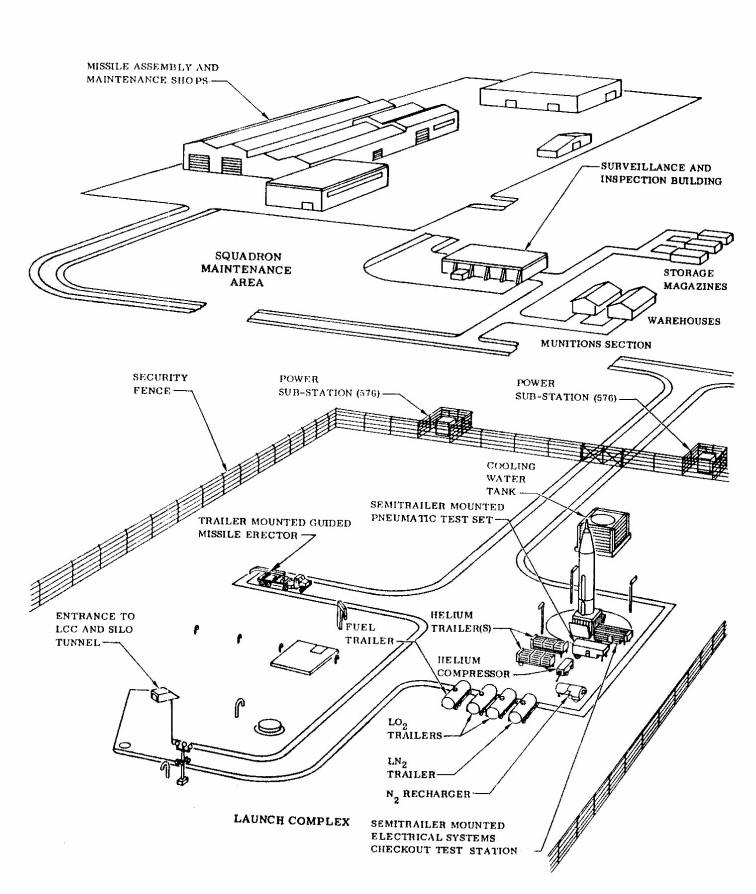

SITE LAYOUT

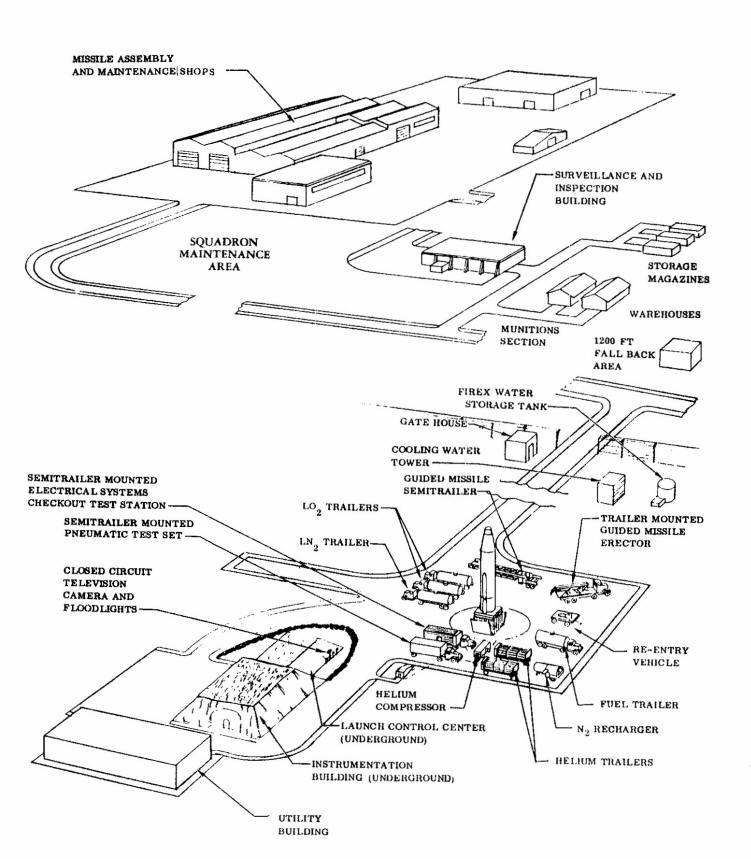

SITE LAYOUT

0STF-2  VANDENBERG AFB

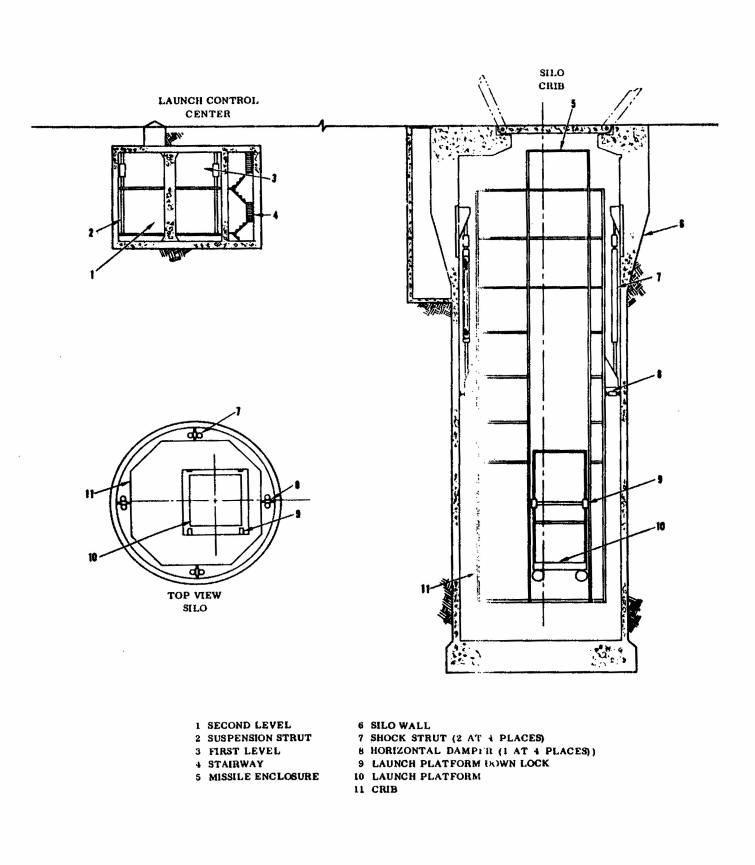

MISSILE SILO LAYOUT
